BROTHER TD-4420TN - Etiketprinter - DT/TT - Rol (11 cm) - 203 dpi - tot 152.4 mm/sec - USB 2.0, LAN, USB host, RS232C

Redcorp# 07359761 Article# TD4420TNZ1
Redcorp# 07359761 Article# TD4420TNZ1
€ 467,49 Excl. btw
Start vanaf € 455,07 Details
Td-4420tn BROTHER TD-4420TN - Etiketprinter - DT/TT - Rol (11 cm) - 203 dpi - tot 152.4 mm/sec - USB 2.0, LAN, USB host, RS232C
Contact Redcorp on +32 (0)2 558.30.00
Bel +32 (0)2 558.30.00 of start een chat conversatie voor een snellere leverin

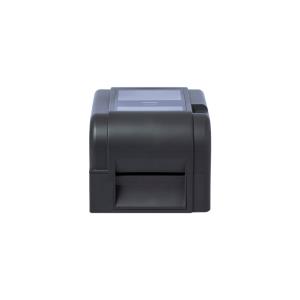

TD-4420TN Label printer

Features
  • Cutter : Guillotine & Partial Auto cutter option (User irreplaceable)
  • Peeler : Peeler option (User irreplaceable)
  • Bar Code
    • 1D bar code : Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
    • 2D bar code : GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
  • Printer control command :
    • FBPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
    • FBPL-EZS (Compatible to EPL, ZPL, ZPL II, SBPL)
  • Built in Fonts :
  • 8 alpha-numeric bitmap fonts
  • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Specifications

Display

LCD No
LED 1 (3 color - Green, Red, Amber)

Printing

Print Method Thermal Transfer & Direct Thermal
Maximum Print Width 108 mm max.
Maximum Print Length 25,400 mm
Maximum Print Speed 152.4 mm/second
Print Resolution 203 dpi, 8 dots/mm

Power Supply

Power Supply External universal switching power supply
  • Input: AC 100-240V, 2.5A, 50-60Hz
  • Output: DC 24V, 2.5A, 60W

Size

Dimensions 204 mm (W) x 280 mm (D) x 164 mm (H)
Weight 2.5 kg

Paper Specification

Media type Continuous, die-cut, black mark, fan-fold, notch
Wound type Outside wound
Media Width 20 - 112 mm
Media thickness range 0.06 - 0.19 mm
Outside diameter 127 mm
Core size 25.4 - 38 mm
Media sensor Transmissive/Gap

Ribbon Specification

Length 300 m long, max. OD 67 mm, 1" core (ink coated outside)
110 m long, max. OD 40 mm, 0.5" core (ink coated outside)
Ribbon width 40 - 110 mm

PC Connection

Interface
  • USB 2.0
  • Internal Ethernet, 10/100 Mbps
  • RS232
  • USB host, for scanner or PC keyboard
