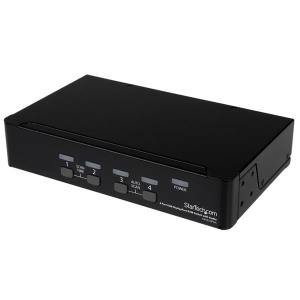

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a [%product id="SV431RACK" text="1U Rackmount Bracket"%] (sold separately) that turns this KVM into a rackmountable KVM.
Benefits
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Features
- 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Hotkey and push-button switching
- Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
- OS independent - No driver or software required
- Supports a maximum resolution of 3840x2400 at lower refresh rates
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- Integrated 2 port USB 2.0 hub
- User-defined scan time intervals
- VESA and CEA compliant
- Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Features
- 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Hotkey and push-button switching
- Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
- OS independent - No driver or software required
- Supports a maximum resolution of 3840x2400 at lower refresh rates
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- Integrated 2 port USB 2.0 hub
- User-defined scan time intervals
- VESA and CEA compliant
- Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters
- 7.1 Channel High Definition Audio support plus dual channel Analog Stereo and Microphone
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- Hotkey and push-button switching
- Native DisplayPort resolution of 2560x1600 @60Hz; beyond 1080p
- OS independent - No driver or software required
- Supports a maximum resolution of 3840x2400 at lower refresh rates
- Supports DDC2B for monitor detection
- Supports hot-plug, un-plug and link status-failure detection
- Integrated 2 port USB 2.0 hub
- User-defined scan time intervals
- VESA and CEA compliant
- Fully compatible with Mini-DisplayPort, HDMI, and DVI adapters
Specification | Console Interface(s): 3.5 mm Mini-Jack (3 Position) Female DisplayPort (20 pin) Female USB Type-A (4 pin) USB 2.0 Female Host Connectors: 3.5 mm Mini-Jack (3 Position) Female DisplayPort (20 pin) Female USB B (4 pin) Female Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -20°C to 60°C (-4°F to 140°F) Humidity: 0~80% RH Audio: Yes KVM Ports: 4 PC Interface: USB PC Video Type: DisplayPort Number of Monitors Supported: 1 Rack-Mountable: Optional Cables Included: No Daisy-Chain: No LED Indicators: Green - Online indicator (One LED per port) Power Red - Select indicator (One LED per port) Shipping (Package) Weight: 1.7 kg [3.8 lb] On-Screen Display: No DVI Support: Yes - Dual Link IP Control: No Hot-Key Selection: Yes Maximum Digital Resolutions: 2560 x 1600 @ 60Hz Wide Screen Supported: Yes Maximum Number of Users: 1 Port Selection Support: Push Button and Hotkeys Color: Black Enclosure Type: Steel Product Width: 220.7 mm [8.7 in] Product Height: 44 mm [1.7 in] Product Depth: 130.6 mm [5.1 in] Product Weight: 1100 g [38.8 oz] Power Source: AC Adapter Included Input Voltage: 110V-240V AC Input Current: 0.8A Output Voltage: 12 DC Output Current: 1.5A Center Tip Polarity: Positive Plug Type: M Power Consumption (In Watts): 18 OS Compatibility: OS independent; No software or drivers required Included in Package: 4-port DisplayPort KVM switch foot pads universal power adapter (NA/UK/EU/AU) instruction manual |
