CISCO Smart Switch - Cbs220 8-port Ge Ext Ps 2x1g Sfp
Redcorp# 0918V514
Article# CBS220-8T-E-2G-UK

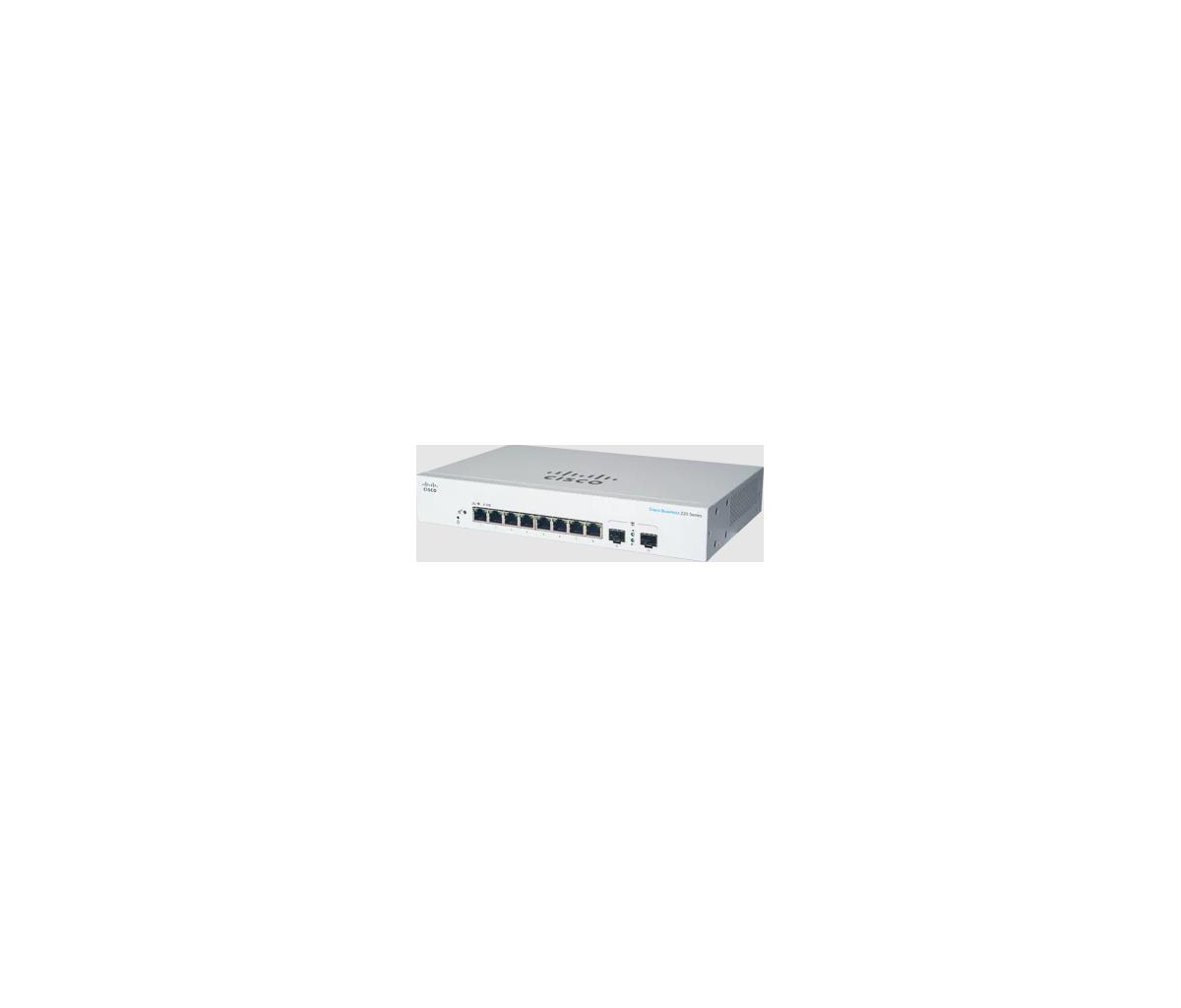

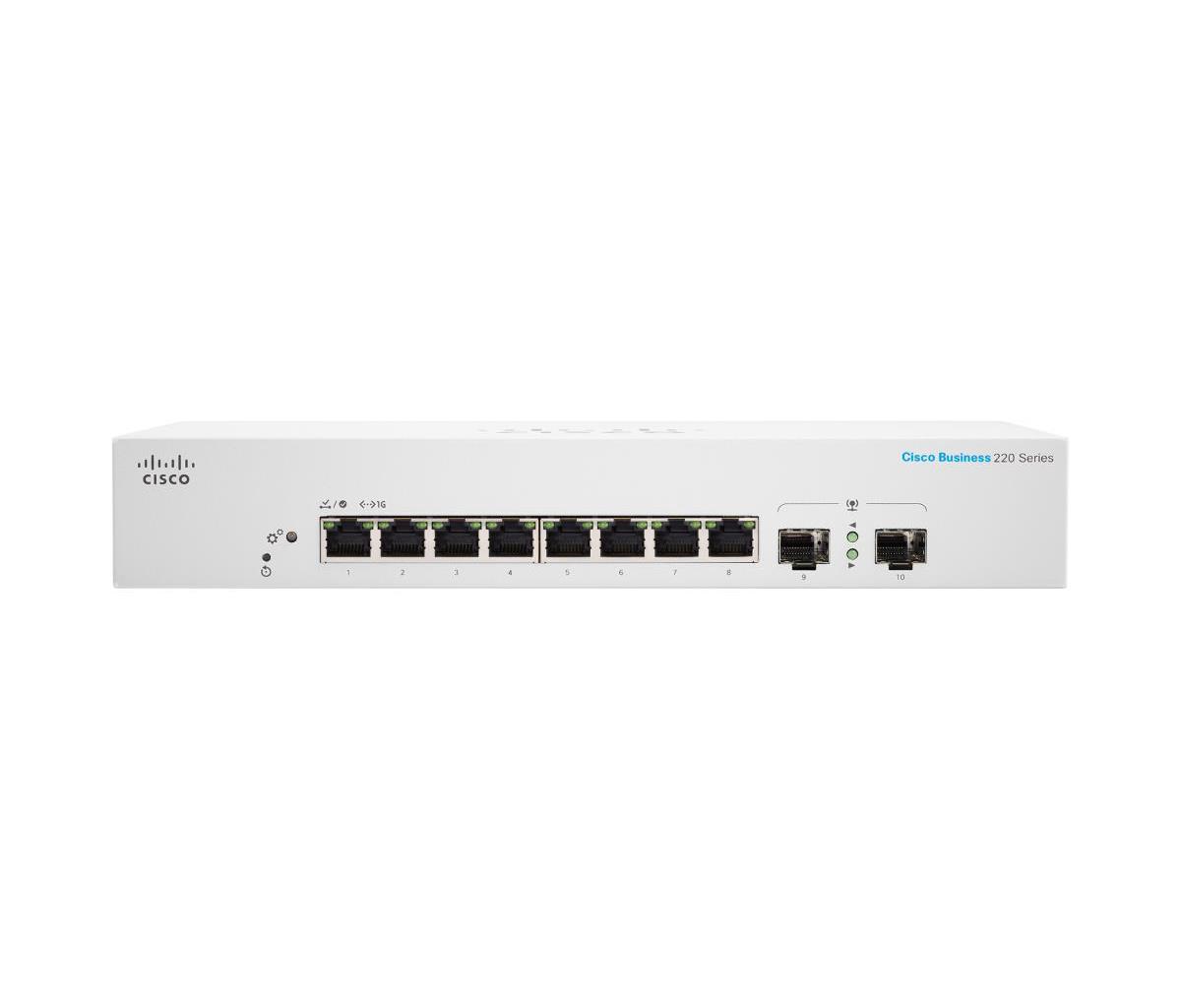

Smart Switch - Cbs220 8-port Ge Ext Ps 2x1g Sfp
Other recommendations for your business

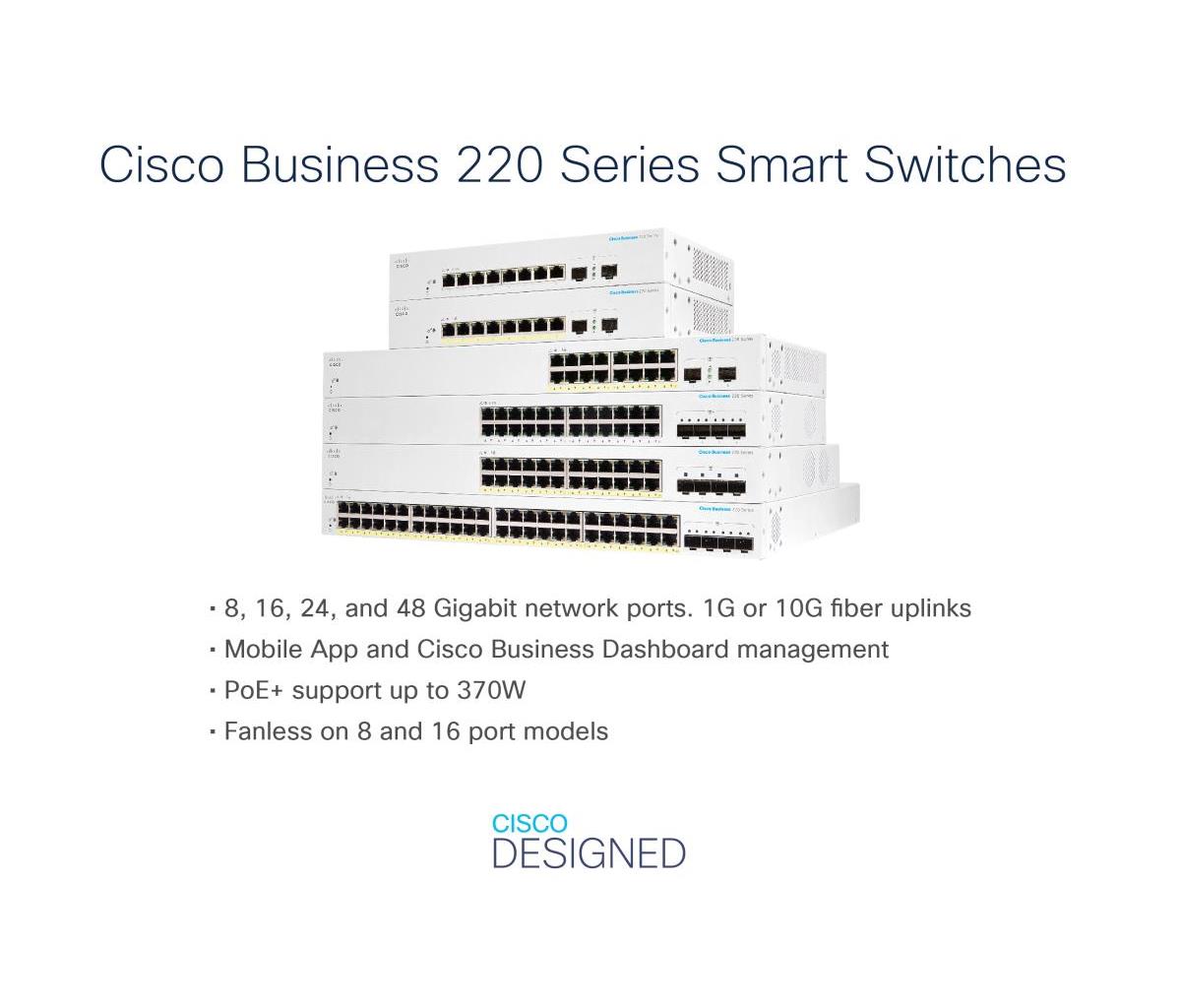

The Cisco Business CBS220-8T-E-2G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Network
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Number of VLANs
256
Data transmission
Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8192 entries
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
4.1 MB
Security
DHCP features
DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
SNMP, SNMPv2, SNMPv3
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication type
IEEE 802.1x, RADIUS
Queue scheduling algorithms
Weighted Round Robin (WRR)
Multicast features
Multicast support
Yes
Multicast MAC address table
8192 entries
Protocols
Management protocols
SNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Design
Rack mounting
Yes
Form factor
1U
Product colour
White
Reset button
Yes
LED indicators
Yes
Market segment
Business
Country of origin
China
Performance
Built-in processor
Yes
Internal memory
256 MB
Flash memory
64 MB
Firmware upgradeable
Yes
Technical details
Products per shipping (inner) case
1 pc(s)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power plug type
Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
20.13 BTU/h
Weight & dimensions
Width
170 mm
Depth
279.4 mm
Height
44.5 mm
Weight
1.16 kg
Packaging data
Package width
292.1 mm
Package depth
368.3 mm
Package height
106.7 mm
Package weight
2.39 kg
Logistics data
Quantity per pack
1 pc(s)
Harmonized System (HS) code
85176990
Products per master (outer) case
1 pc(s)
Other features
Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
