CISCO Smart Switch - Cbs220 48-port Ge Full Poe 4x10g Sfp+
Redcorp# 0918V510
Article# CBS220-48FP-4X-UK

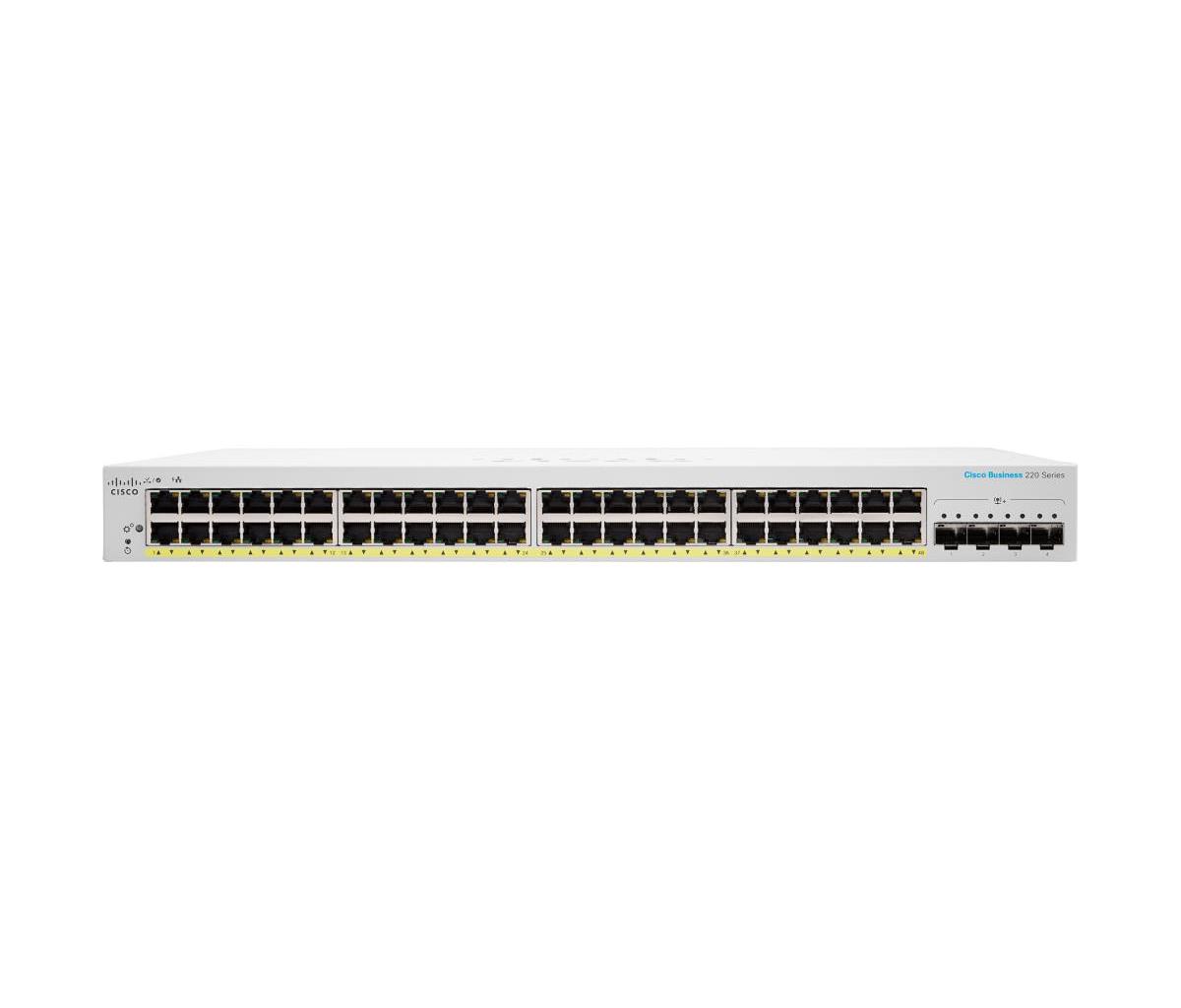

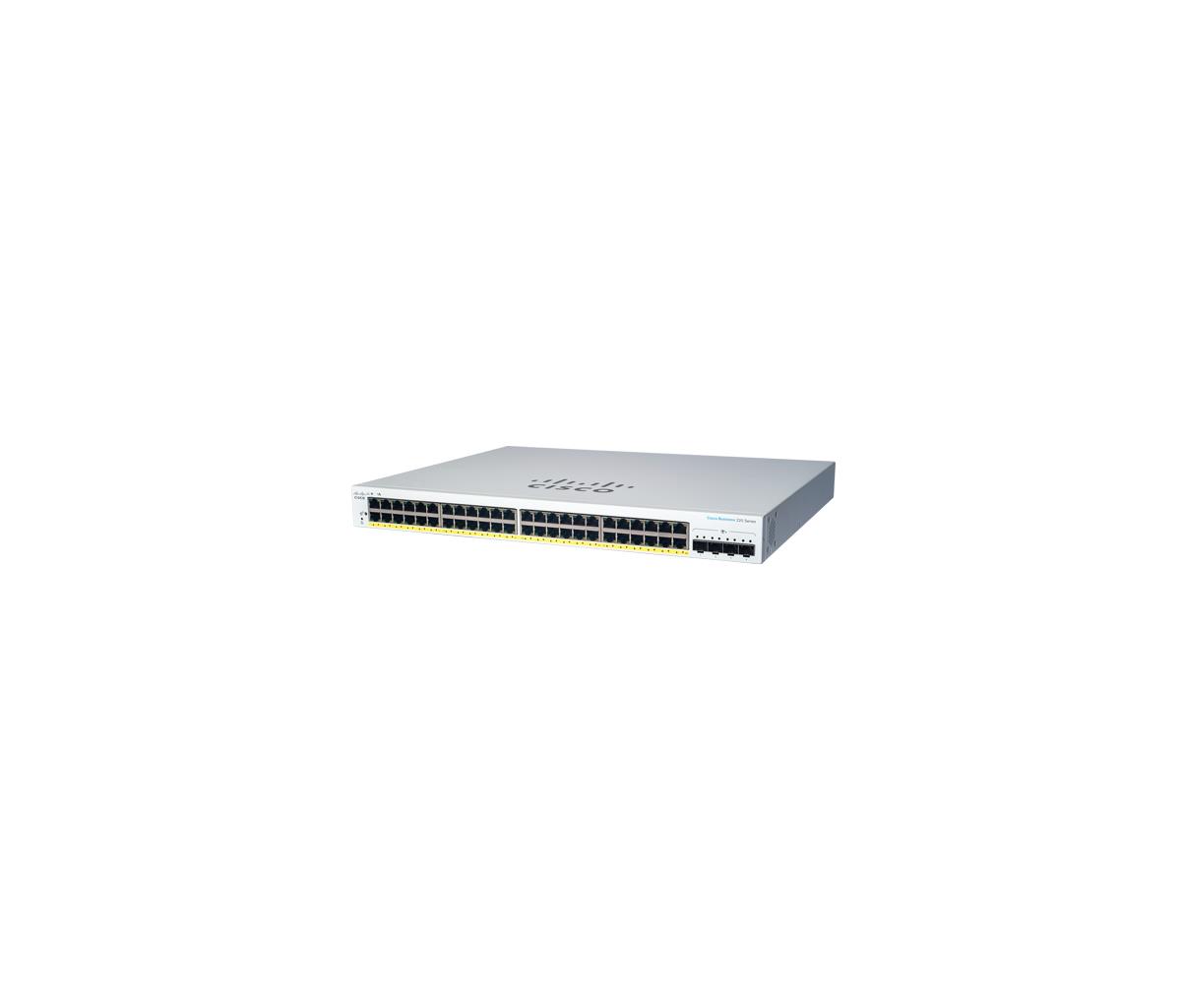

Smart Switch - Cbs220 48-port Ge Full Poe 4x10g Sfp+
Other recommendations for your business
The Cisco Business CBS220-48FP-4X switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Specs
Management features
Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4
Network
Networking standards
IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x
10G support
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Number of VLANs
256
Data transmission
Switching capacity
176 Gbit/s
MAC address table
8192 entries
Jumbo frames support
Yes
Jumbo frames
9216
Security
DHCP features
DHCP client
Access Control List (ACL)
Yes
Access Control List (ACL) rules
512
IGMP snooping
Yes
IGMP entries
256
Security algorithms
SSL/TLS
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Multicast features
Multicast support
Yes
Number of multicast groups filtered
256
Protocols
Management protocols
SNMP
GARP VLAN Registration Protocol (GVRP)
Yes
Design
Rack mounting
Yes
Product colour
White
Reset button
Yes
LED indicators
Yes
Number of fans
1 fan(s)
Market segment
Business
Country of origin
China
Performance
Firmware upgradeable
Yes
Technical details
Products per shipping (inner) case
1 pc(s)
Power
Power plug type
Type C
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
48
Total Power over Ethernet (PoE) budget
740 W
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
350 mm
Depth
440 mm
Height
44 mm
Weight
5.65 kg
Packaging data
Package width
513.1 mm
Package depth
574 mm
Package height
109.2 mm
Package weight
7.91 kg
Logistics data
Quantity per pack
1 pc(s)
Products per master (outer) case
1 pc(s)
Other features
Packaging content
Switch, Power cord or adapter, Mounting hardware, and Quick Start Guide
